When five-axis linkage becomes the core code for building a "manufacturing power",

The HSM-5X series five-axis machining centers of Hanmo Industry feature a combination of "five-axis linkage + high speed and high precision"

Overcome the processing difficulties of "bottleneck" parts such as turbine blades and integral blisks

This has enabled Chinese equipment to have the confidence to compete on the same stage with top international brands in high-end fields such as aerospace and medical devices.

The "Precision Revolution" of three models resonating at the same frequency

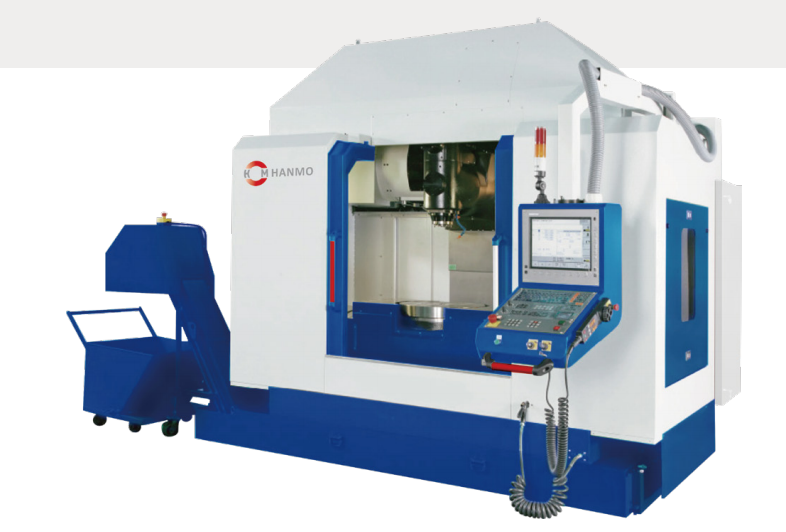

HSM-5XA

Designed specifically for long and complex workpieces, with an X-axis 1100mm stroke and an A-axis ±360° rotary table, the full surface processing of turbine blades can be completed in one clamping. The positioning accuracy reaches 0.010mm, and the repeat positioning accuracy is 0.006mm.

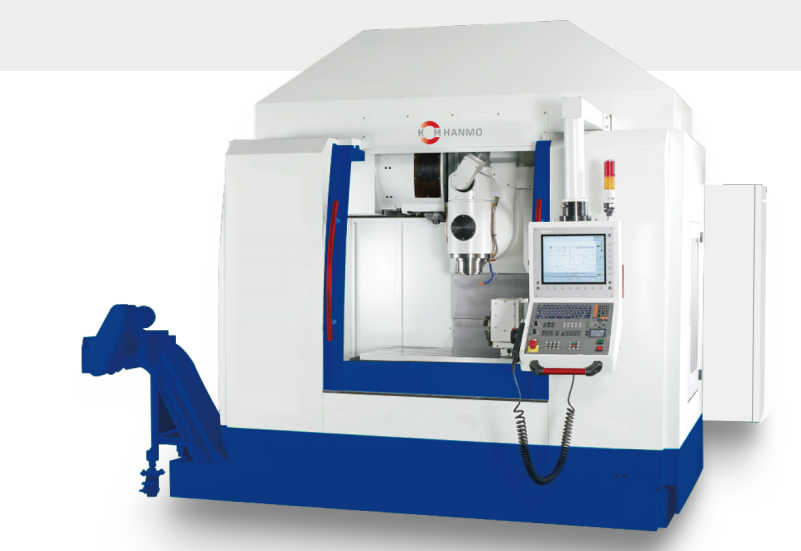

HSM-5XC：

升级 Z 轴行程至 610 (V)/760 (H) mm，B 轴旋转头 - 30°~120° 大范围摆动，适配模具五面加工，工作台负载达 500kg，动态响应速度提升 30%；

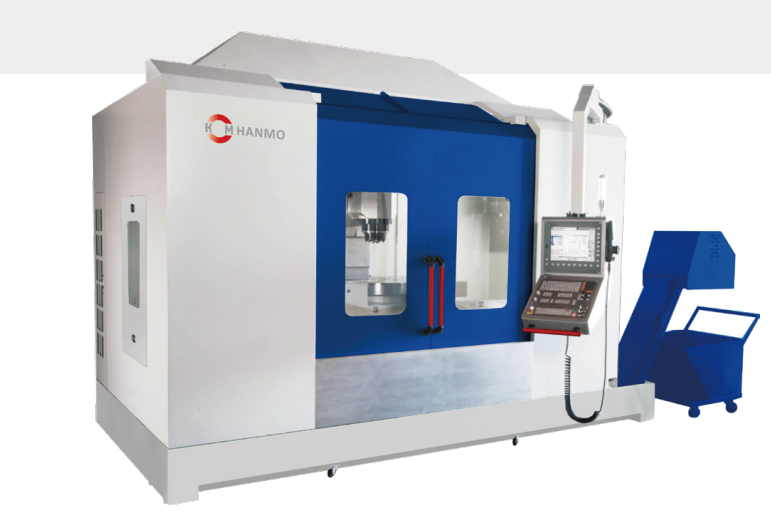

HSM-1500-5XC:

The X-axis features a 1500mm ultra-large format and is equipped with a 700mm diameter torque worktable (with a rotational speed of 1000 revolutions per minute). It supports turning and milling compound processing and can complete the milling and turning processes of large aluminum alloy components in one go, with an efficiency twice that of traditional equipment.

▶ Core Technology: "Chinese Wisdom" Hidden in Parameters

Torque motor drive

The B-axis rotating head adopts the latest torque motor technology, which is wear-free and has excellent dynamic performance. The rotation range is -30 ° to 120°, ensuring precise control of tool posture during complex curved surface processing.

High-speed spindle

The maximum spindle speed is 18,000 revolutions per minute, with a power of 26kW and a torque of 124/154Nm. Combined with the HSK-A63 tool holder, it can easily handle the cutting of hard materials such as titanium alloys and superalloys.

Full closed-loop measurement system

Three-axis linear grating ruler + two-axis rotary encoder, with a resolution of 0.001mm, provides real-time compensation for thermal deformation and mechanical errors, achieving "micron-level" processing consistency.

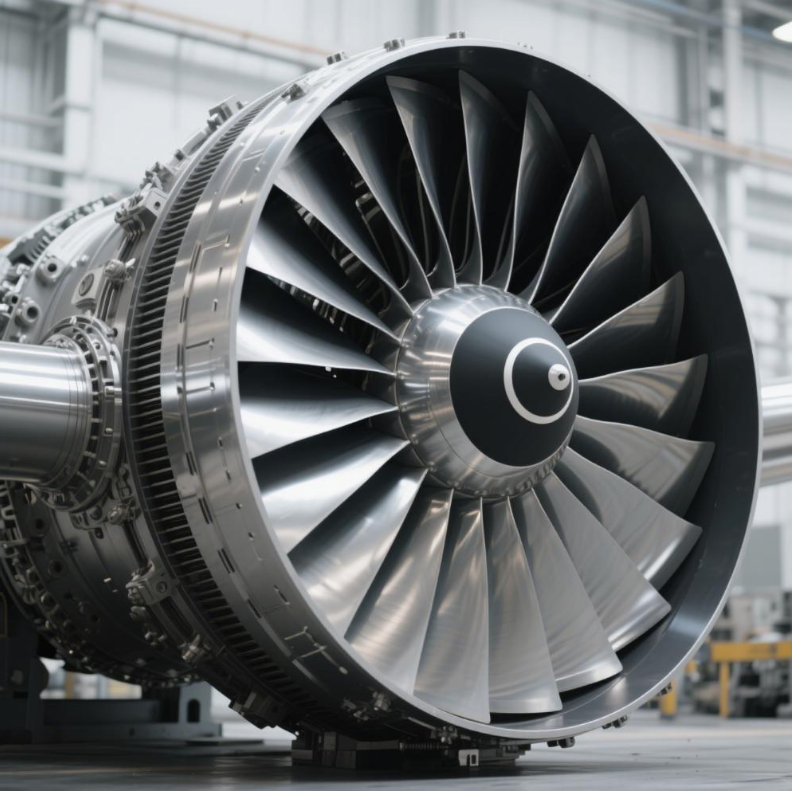

In the processing of integral blisks for large aircraft engines,

The five-axis linkage function of HSM-1500-5XC can achieve the integrated forming of the blade root and the wheel disk, avoiding the splicing error of traditional segmented processing.

The surface roughness has been reduced to Ra0.4, meeting international aviation standards.

With an X-axis travel of 1500mm, it can better meet the processing requirements of nacelle components for wide-body passenger aircraft engines and break the monopoly of foreign equipment.

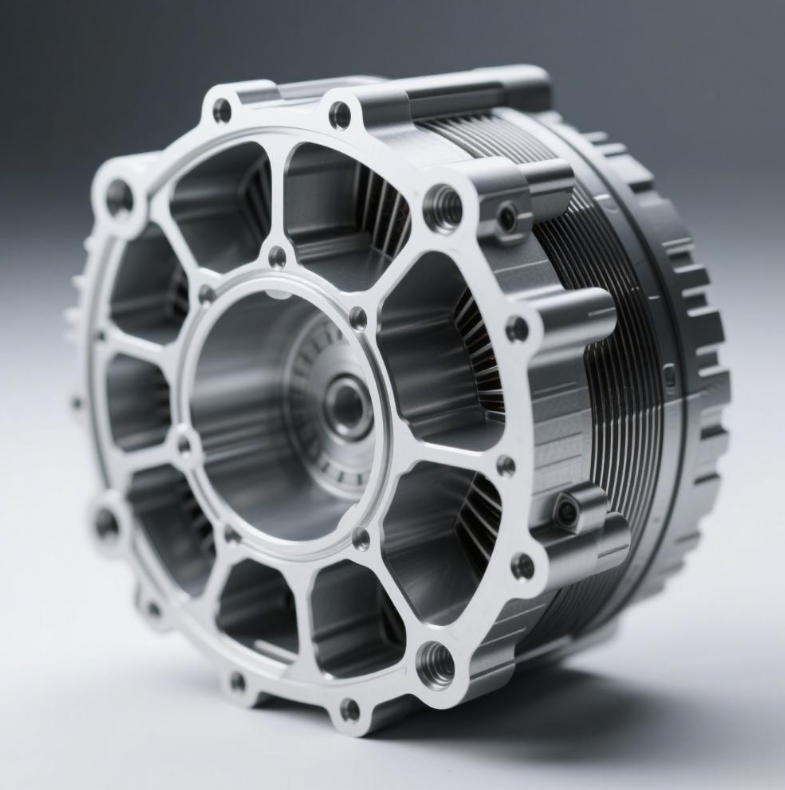

The high dynamic performance of HSM-5XC is suitable for multi-chamber processing of motor housings in new energy vehicles.

A rapid movement speed of 48 meters per minute and a cutting feed rate of 45 meters per minute

The processing time for a single shell was reduced from 4 hours to 1.5 hours.

A workbench load-bearing capacity of 1500kg

It can also directly clamp large die-casting chassis molds, helping automakers accelerate the entire process from "design - processing - mass production".

In the processing of heart valve stents,

The 0.006mm repeat positioning accuracy of HSM-5XA

It can achieve the cutting of 0.1mm diameter fine tubes and the forming of curved surfaces of titanium alloy materials

Ensure the biocompatibility of the stent during implantation.

Its fully enclosed protection and micro-lubrication system better meet the cleanliness requirements for medical equipment processing.

When these three types of machine tools, equipped with automatic tool changers ranging from 32 to 60 tools and with a net weight of 9,000 to 12,000 kilograms, were established in Chinese workshops,

They are undergoing an identity transformation from "industrial mother machines" to "major national equipment"

This is the best footnote to the leap of China's manufacturing industry from "scale advantage" to "quality advantage".
