In the high-end fields of mold manufacturing and mechanical engineering, the performance of a single machine tool is sufficient to define the ceiling of an industry.

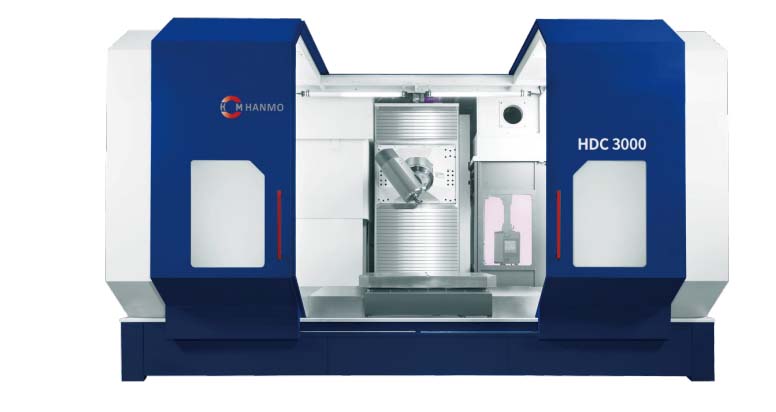

The newly launched HDC-3000 universal machining center by Hanmo Industry

With a 10-ton workbench load, a rapid movement speed of 50 meters per minute and five-axis linkage technology,

Perfectly integrating heavy-duty processing with micron precision

Provide disruptive solutions for fields such as aerospace molds and automotive precision components.

I. Ultimate Breakthrough in Heavy-Duty Processing: Micron-level control under a 10-ton load

1. Rigid base: Install stabilizers for heavy-duty processing

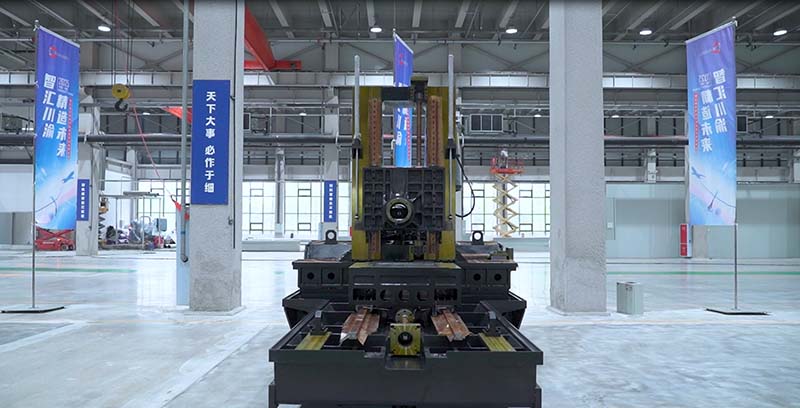

The HDC-3000 adopts a welded machine bed.

Optimize the stiffness-to-mass ratio through a ribbed plate structure that reduces weight

In combination with mineral casting damping Y-shaped columns, the vibration damping effect is enhanced by 60%

Ensure that a positioning accuracy of 0.01mm can still be maintained under a load of 10 tons.

This "combination of rigidity and flexibility" design has bid farewell to the history of large-scale mold processing being "heavy and unstable".

2. Dynamic performance: A dual revolution of speed and power

Fast movement at 45 meters per minute

Equipped with an acceleration of 4 meters per second ², the X-axis adopts rack and pinion transmission, while the Y/Z axes are driven by enhanced types, achieving lightning response under heavy loads.

High-torque milling head

The torque of the single-axis CNC milling head reaches 525 N · m (S6 duty cycle).

The two-axis CNC milling head has a maximum rotational speed of 15,000 revolutions per minute, easily handling deep cavity processing of high-strength alloy materials.

3. Chip removal and cooling: An invisible guarantee for heavy-duty processing

Y-shaped bed with built-in chip conveyor (upgradable)

In coordination with the 60-bar pressure cooling channel of the main shaft and the central air-blowing device,

Solve the problems of thermal deformation and chip accumulation in the processing of large parts

The tool life is extended by more than 30%.

Second, Five-axis linkage: Bringing the processing of complex curved surfaces into the era of one-time forming

HDC-3000 supports five-axis linkage processing.

A rotary table driven by worm gear and worm transmission or maintenance-free torque

It can achieve ±120° inclination and 360° rotation, and multi-faceted processing can be completed with just one clamping.

It is equipped with a standard high dynamic range drive system and can be optionally fitted with Siemens 840D SL, supporting real-time optimization of 3D trajectories.

The direct measurement system, in combination with the temperature compensation of the electric spindle, automatically corrects the thermal deformation error, ensuring the consistency of processing accuracy over a long period of time.

Iii. Modular Configuration: Full-scenario coverage from "Standardization" to "customization"

▶ Intelligent protection and monitoring

Fully enclosed protection combined with maintenance-free oil emulsion separator, in compliance with ISO14001 environmental protection standards;

The workpiece measurement system, tool damage monitoring and tool coding functions achieve intelligent control of the entire processing process.

▶ Flexible production solutions

The multi-pallet exchange system supports 24-hour unattended production.

The zero-point clamping system interfaces with the medium at the center of the worktable, meeting the rapid mold changing requirements of automated production lines.

▶ Tool magazine and spindle expansion

It can be equipped with a row tool magazine with more than 100 tools, and the maximum tool length is 800 millimeters.

The HSK100/SK50 and other multi-specification spindle interfaces meet the full process requirements from rough machining to finish machining.

The birth of HDC-3000 not only brings a 50% cost reduction of imported equipment to Chinese enterprises, but also powerfully proves that in the high-end manufacturing race, Chinese industrial mother machines have the strength to compete on the same stage with international top brands.
