At the processing site of the giant base for new energy equipment manufacturing and the precision milling workshop for complex aerospace components, a machine tool capable of handling parts several meters long is becoming a key piece of the puzzle for "Made in China 2025".

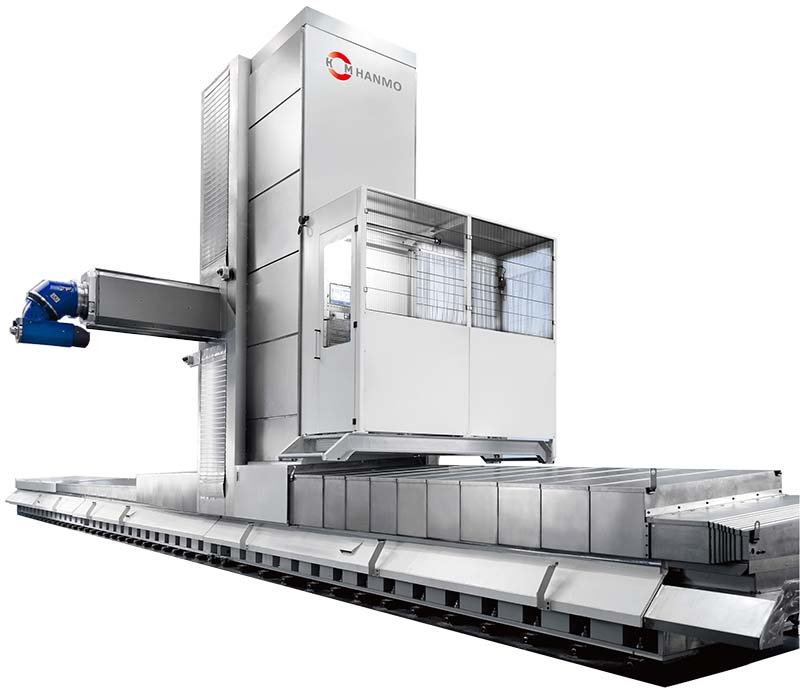

The FS type mobile column machine tool launched by Hanmo Industry

With an X-axis ultra-large travel of 7000-30000mm,

Combined with high dynamic milling heads and mineral casting damping technology,

Elevate the precision, efficiency and reliability of large parts processing to a whole new dimension.

I. Redefining the Boundary of "Big" : The Leap from Millimeters to micrometers

1. Super-large format processing: Enable "giant" parts to be formed in one go

The X-axis travel of the FS machine tool can reach 30 meters, the Y-axis 1.5 meters, and the Z-axis 4 meters.

It is equivalent to achieving millimeter-level control within a working range the size of a basketball court.

This meticulous refinement ability on a large scale makes it an exclusive processing tool for giant components such as wind power equipment bases, ship propellers, and nuclear power pressure vessels.

The machine tool worktable is designed with a clamping step distance of 500mm, which can better adapt to large workpieces of different specifications, reduce the number of clamping times, and avoid precision loss from the source.

2. High dynamic Range Milling head: The fusion of powerful performance and precise control

Equipped with multiple versions of spindles such as HSK100 and SK50, with a maximum rotational speed of 10,000 RPM and a torque of up to 1,000 Nm, it can easily handle high-strength alloy materials.

The dual-axis stepless adjustable milling head supports three-dimensional synchronous processing. This unique technology of Hanmo has increased the processing efficiency of complex curved surfaces by more than three times and reduced the surface roughness to below Ra1.6.

3. Damping of mineral castings: Installing silent chips on giant machine tools

The column is made of mineral casting material, and its vibration damping effect is 50% better than that of traditional cast iron. This not only extends the tool life by 50% but also keeps the processing noise below 85 decibels.

This design that combines rigidity and flexibility enables the 30-meter-long machine tool to remain stable even when moving at high speed, just like a high-speed train precisely stopping while speeding.

Ii. Full-chain Innovation: In-depth Breakthroughs from Parameters to scenarios

▶ Intelligent drive system

The X/Y/Z axes adopt rack and pinion transmission and master-slave configuration, with a maximum acceleration of up to 2m/s² and a rapid movement speed of 40 meters per minute, which is equivalent to enabling a truck to precisely start and stop at the acceleration of a sports car.

In combination with the absolute glass scale measurement system, the resolution reaches 0.001mm, achieving a dual breakthrough of large stroke and micro-control.

▶ Modular optional configuration

Protection system

Fully enclosed/partially enclosed protection meets the requirements of different working conditions, and the maintenance-free oil emulsion separator makes the coolant circulation more environmentally friendly.

Intelligent monitoring

The tool breakage monitoring and workpiece measurement system provide real-time protection for processing quality, and the multi-tray exchange system facilitates batch production.

Cooling technology

The 60-bar pressure cooling inside the main shaft and the central air-blowing device solve the problem of thermal deformation in the processing of large parts.

▶ Numerical Control "Super Brain"

It is equipped with the TNC6 system as standard, and Siemens 840D SL is optional. It supports 3D programming and real-time error compensation.

Take the processing of wind power flanges as an example. The system can automatically optimize the tool path, reducing the process that originally took 3 days to 1.5 days, and improving the accuracy by 40%.

The FS type mobile column machine tool not only reduces the procurement cost for Chinese enterprises by 40% compared to imported equipment, but also fills the domestic equipment gap for "large-sized precision processing".

Supported by over 120 patents, Hanmo Industry has proven with FS machine tools that:

When "Made in China" simultaneously masters the keys to "getting bigger" and "getting better", it will be able to stand tall as the backbone of the national industry in the global high-end equipment market.
