In the uncharted territory of high-end equipment manufacturing, the precision of a single machine tool is sufficient to measure the industrial height of a country.

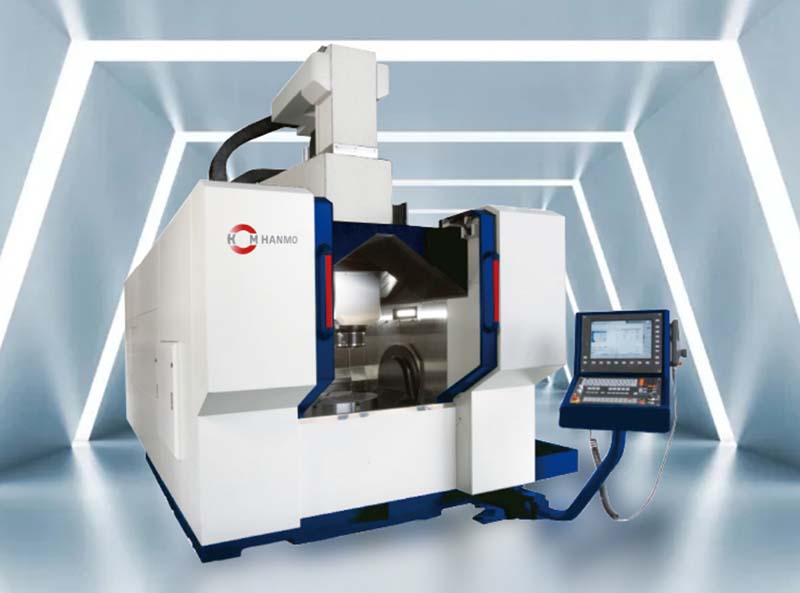

The FMC800U gantry five-axis machining center launched by Hanmo Industry

With the disruptive design of "completing multi-face milling and turning in one clamping",

Bring aerospace-grade processing accuracy into fields such as automotive manufacturing and precision molds

Interpret the true connotation of "industrial mother machine" through technological breakthroughs

This is not merely a piece of equipment; it is also the "hardcore confidence" for China's manufacturing industry to climb to the high end of the global value chain.

1. Revolutionary five-axis black technology: Redefining the ceiling of processing efficiency

1. Rigid frame: Installing a "stabilizer" for precision

The machine tool adopts a fully cast rigid frame structure

The components have been dynamically optimized to suppress vibration interference during high-speed processing from the source.

This "steel and iron skeleton" design

While making the X/Y/Z axis strokes reach 800/900+330/620mm respectively,

The positioning accuracy can still be controlled at the micrometer level.

It is equivalent to threading a needle with a tool while it is running at high speed.

2. Powerful Spindle: The "Heart Engine" of Industrial Processing

P18/P24 spindle

With a maximum rotational speed of 18,000 to 24,000 revolutions per minute, a power output of 26/32 kW and a torque of 124/154Nm, it can easily handle hard materials such as aviation aluminum alloy.

C27T Turning spindle

With a rotational speed of 10,000 revolutions per minute and an HSK-T63 taper, it enables combined milling and turning processing, allowing complex parts to be formed in one go.

3. Intelligent tool changing and chip removal: A dual revolution of efficiency and cleanliness

The armless rotary tool magazine with a capacity of 32 tools, combined with servo motor drive, has compressed the tool change time to within 3 seconds, which is the industry-leading.

The combination of chain chip conveyor and screw chip conveyor enables chips and coolant to directly fall into the chip removal channel of the bed, keeping the processing area spotless.

Ii. Numerical Control System: Endowing Machine Tools with a super brain

The FMC800U offers two major CNC solutions:

TNC7 HSCI System

1.0GHz processor + 32G shock-resistant memory, HEROS5 interface supports PDF programming, suitable for high-end precision processing;

Siemens 840Di system

NCU730.2 unit + Windows XP operation interface, compatible with Shopmi3 workshop programming, meeting the requirements of mass production.

By calibrating the rotational axis through kinematics, the machine tool can automatically optimize accuracy, enabling even novice operators to achieve master-level processing results.

Iii. From Laboratory to Production Line: The All-Rounder of High-End Manufacturing

In the field of aerospace,

The ±125° tilt Angle of the A-axis and the 100 revolutions per minute speed of the C-axis of the FMC800U

It can process complex wing surfaces at one time.

In the new energy vehicle industry,

A 1200kg load-bearing rotary table

Easily handle high-precision milling of integrated die-casting chassis;

Even in the manufacturing of medical equipment,

Its 0.01mm grade accuracy can also meet the processing requirements of titanium alloy implants.

From the breakthrough in five-axis linkage technology to the exploration of the autonomy of numerical control systems

Hanmo Industry has built a technological moat with over 120 patents.

The birth of FMC800U

Not only does it bring a 30% cost reduction of imported equipment to Chinese enterprises,

Use a more integrated mode

It proves that the Chinese solution for high-end equipment has become globally competitive.
