In the global wave of manufacturing transformation, high-end industrial mother machines, as the "mother of manufacturing", have always been an important symbol of a country's core competitiveness.

From aerospace precision components to integrated die-casting for new energy vehicles, from the "bottleneck" predicament to independent innovation breakthroughs, Hanmo Industry responds to the call of The Times with hardcore technology, writing a resounding chapter of China's transformation from a "manufacturing giant" to an "intelligent manufacturing power"!

As a national leading enterprise in the field of high-end industrial mother machines,

Hanmo Industry takes "Precision measures industry, stability depicts the future" as its core concept

Anchor the strategic goal of "breaking the foreign technological monopoly and achieving domestic substitution of medium and high-end industrial mother machines".

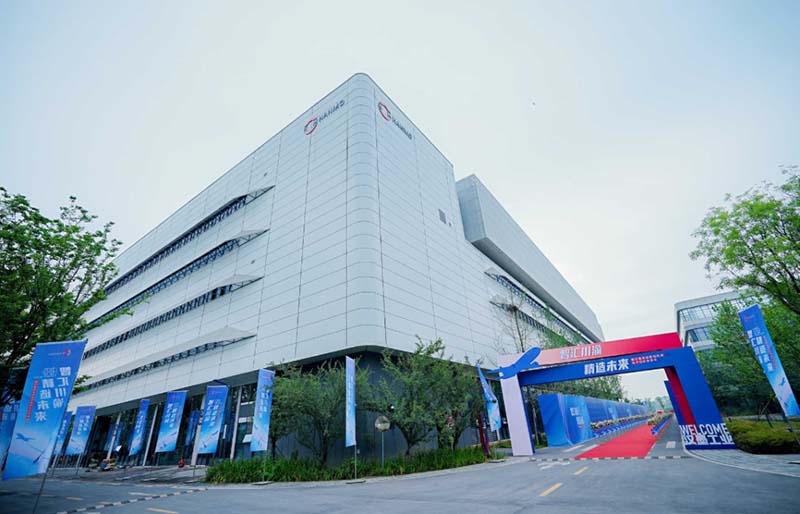

The headquarters of Hanmo Industry is located in the High-tech Industrial Park of Xindu District, Chengdu.

Relying on the team of returned experts and the experience of German Industry 4.0,

Build a digital manufacturing system of "industrial Internet + artificial intelligence"

It has cumulatively won over 120 patents and has become the trusted choice of many leading enterprises.

With a mission on our shoulders and an original aspiration as firm as a torch

Hanmo Industry is well aware that the independent control of high-end equipment is the foundation for the transformation and upgrading of the manufacturing industry.

The latest "major national equipment" developed by Hanmo Industry -

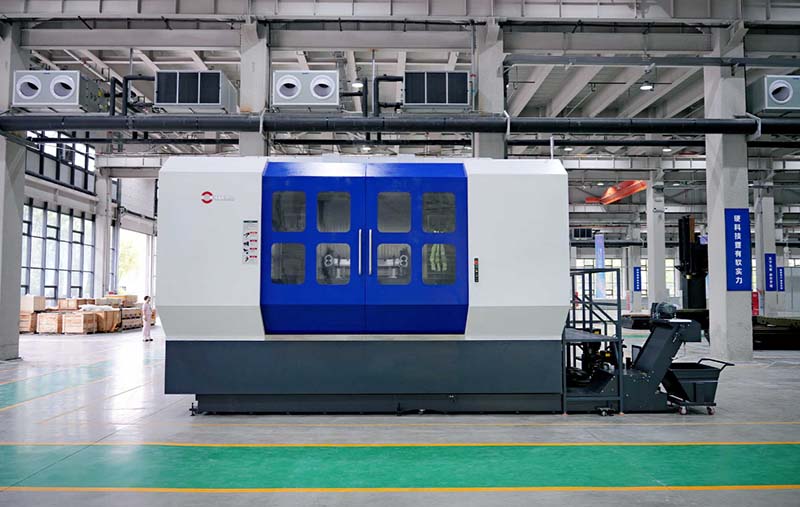

FZC2800DS dual-spindle horizontal five-axis linkage model

Witness how Chinese machine tools define industry benchmarks through technological breakthroughs!

Unveiling Hardcore Technology

How does FZC2800DS reshape the boundaries of intelligent manufacturing

Five-axis linkage sets a new benchmark for precision and efficiency

As a dual-spindle horizontal five-axis linkage model, the FZC2800DS integrates "high precision, high rigidity and high efficiency".

Five-axis linkage technology

With an ultra-wide rotation range of ±120° for the A-axis, ±180° for the C-axis, and ±180° for the B-axis, combined with the X/Y/Z/W axis travel (with A maximum lateral travel of 1870mm), it enables the full-process processing of large integrated die-cast parts (such as the rear base plate, front engine compartment, and battery pack chassis) in one clamping, revolutionizing the traditional multi-station segmented processing mode. Efficiency increased by over 300%!

German high-performance electric spindle

It adopts the HSK-A63 taper hole specification, with a maximum speed of 15,000 RPM, a power of 20kW, and a torque of 20/30Nm. It is equipped with central water outlet and air curtain protection functions, balancing precision processing and strong cutting performance, easily meeting the "high-precision and advanced" demands of aerospace aluminum alloy structural parts and complex cavities of new energy vehicles.

2. Innovative design to address the "pain points" in industrial processing

Intelligent chip removal and heat dissipation

The horizontal layout of the spindle ensures vertical chip removal. The bottom of the processing area is designed with a large inclined plane for chip removal throughout the entire area, ensuring zero chip residue and a 50% increase in heat dissipation efficiency, guaranteeing the stability of long-term continuous processing.

Lightweight and high rigidity

The overall base is fully supported throughout the travel, and the motion axis system is designed with a lightweight structure. The dynamic response speed and acceleration capability have been significantly enhanced. The positioning accuracy reaches 0.015mm (ISO standard), and the repeat positioning accuracy is 0.012mm, comparable to the level of top international machine tools.

Humanized operation experience

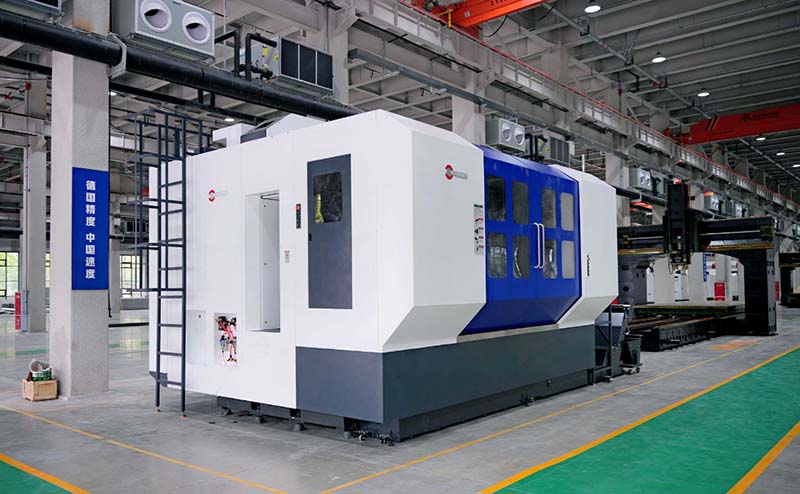

The fully enclosed protective cover is designed with side doors, facilitating program debugging and close observation. The front double door supports manual/automatic loading and unloading, which is suitable for the layout of intelligent production lines.

3. The "heart" of domestic substitution: From core components to system integration

Compatibility between standard and optional configurations

Based on the Hanmo TNC6 numerical control system, it can be optionally equipped with the SIEMENS 840DsI system, tool/workpiece probes, voltage stabilizing power supplies, etc., to meet the needs of different scenarios.

Full-chain independent control

From the spindle, tool magazine (with a capacity of 40 tools and a maximum tool length of 400mm) to the numerical control system, Hanmo Industry has achieved a breakthrough in the localization of key components, breaking the "bottleneck" deadlock. The cost has been reduced by 30% to 50% compared with imported equipment, becoming a "powerful tool" for cost reduction and efficiency improvement in the national manufacturing industry.

This is not only a technological breakthrough for a single machine tool

It is also a microcosm of the independent innovation of China's high-end equipment manufacturing industry.

Hanmo Industry takes FZC2800DS as the fulcrum

What has been driven is the leap of domestic machine tools from "following" to "keeping pace".

It is a vivid practice of the implementation of the "Made in China 2025" strategy.

From precision parts to major national equipment,

From workshop factories to the stars and the vast ocean

Every breakthrough in high-end industrial mother machines is a demonstration of the backbone and confidence of China's manufacturing industry.

Proof of Hanmo Industrial FZC2800DS

True national heavyweights are never bought or waited for; they are fought for and worked for!

The future

Let's look forward to more "Han-style" breakthroughs together and witness China's magnificent transformation from a "manufacturing giant" to an "intelligent manufacturing power"!
