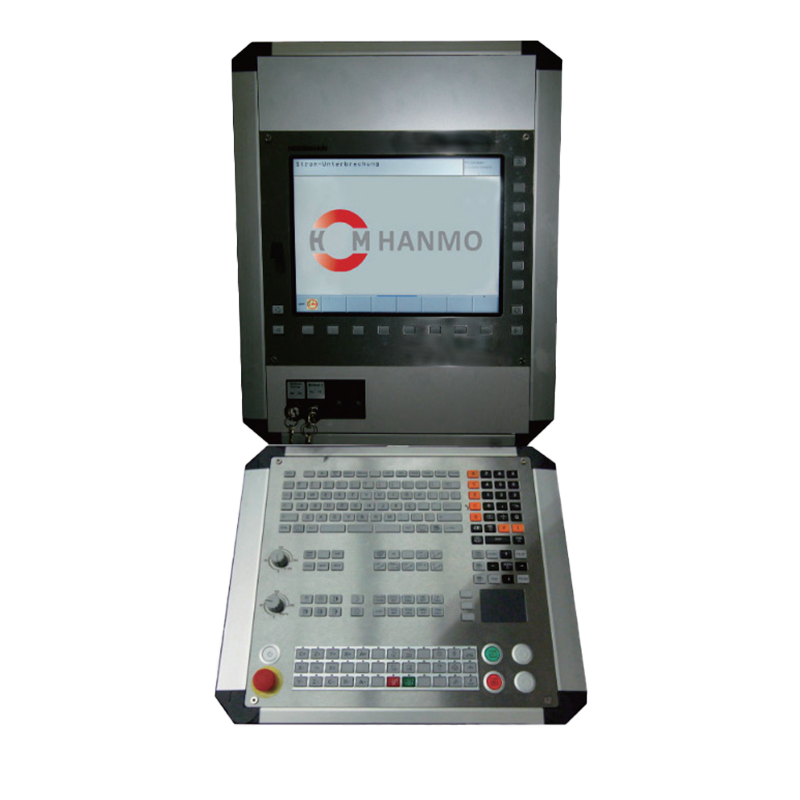

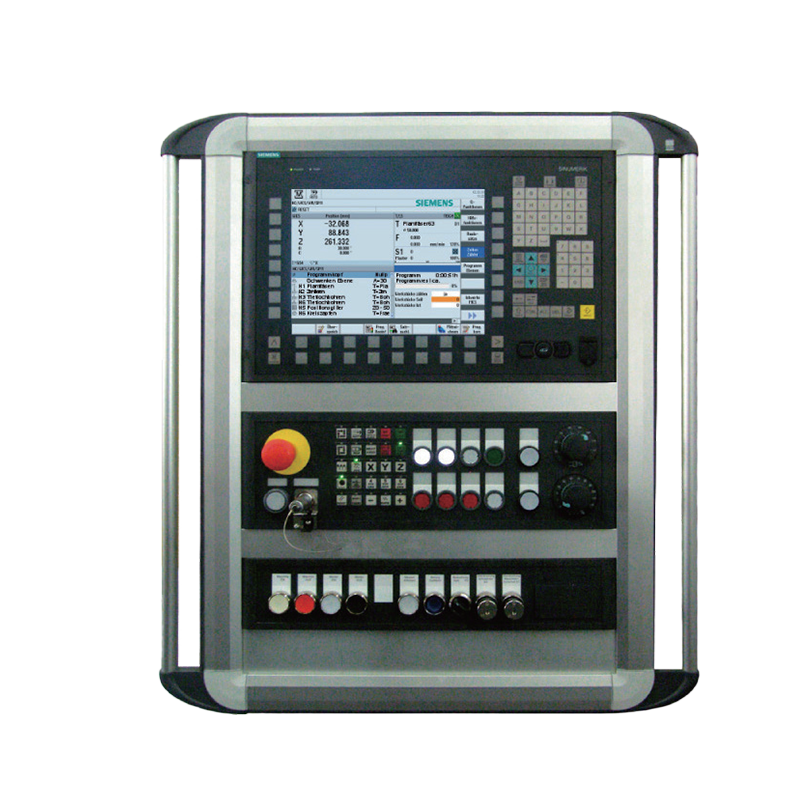

Optional configuration

Fully enclosed protection

The maximum load of the workbench reaches 3 tons

Built-in chip conveyor on Y-axis bed (upgradable)

Temperature compensation function of the electric spindle

The main shaft is equipped with an internal cooling channel, and the pressure can be increased to 60 bar

A maintenance-free oil emulsion separation device with fully enclosed protection

Main shaft center air-blowing device

External air-blowing device spray/air-blowing gun

Spindle micro-lubrication function workpiece measurement system (sensor device)

Tool breakage monitoring function

Rotating observation window for tool coding function

Manual operation module for guide rail flushing function

Horizontal gear spindle, with a torque of up to 2,500 N · m

A rotary worktable that can be customized according to the specific size of the customer

Cool the bearing housing

Kinematic measurement function of the rotating axis

Special designs can be made according to customer specifications

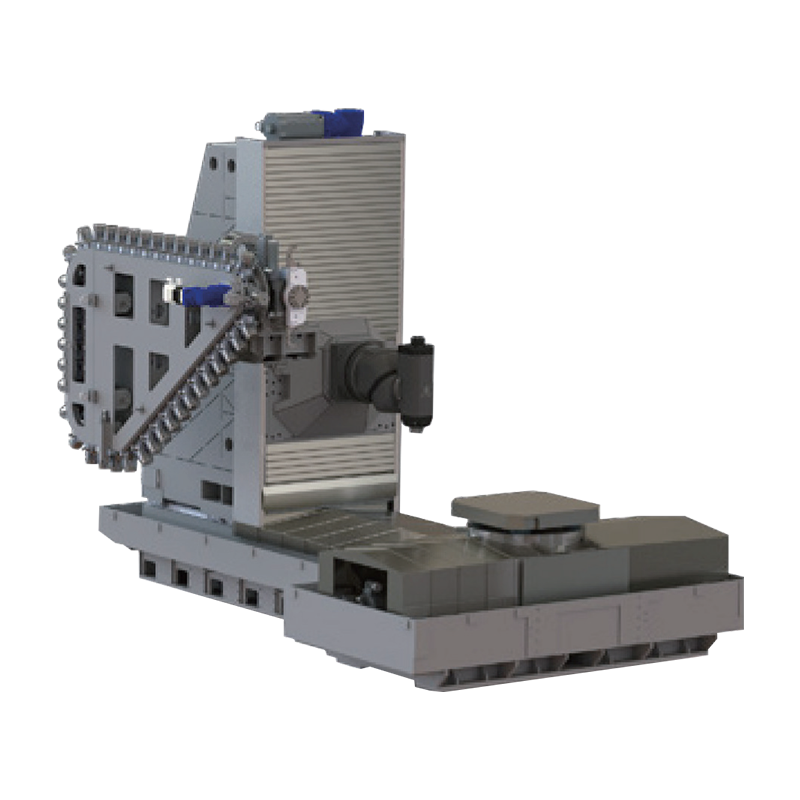

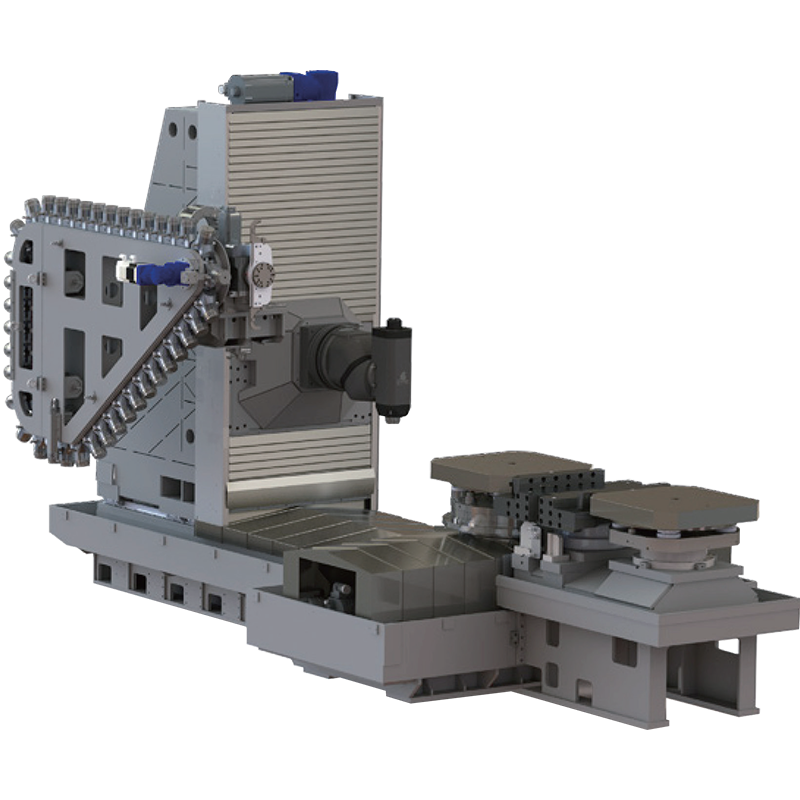

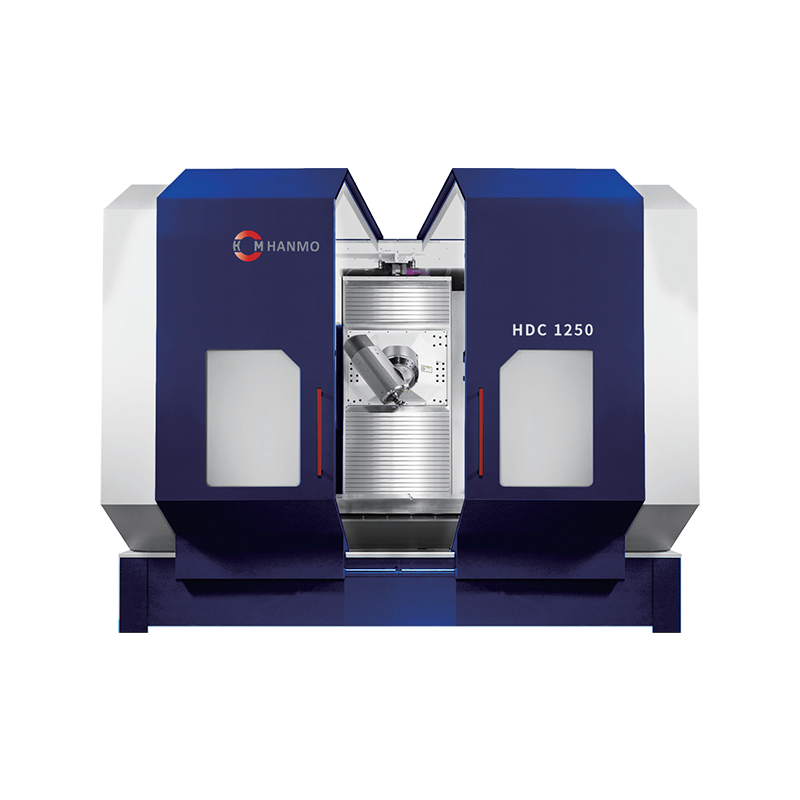

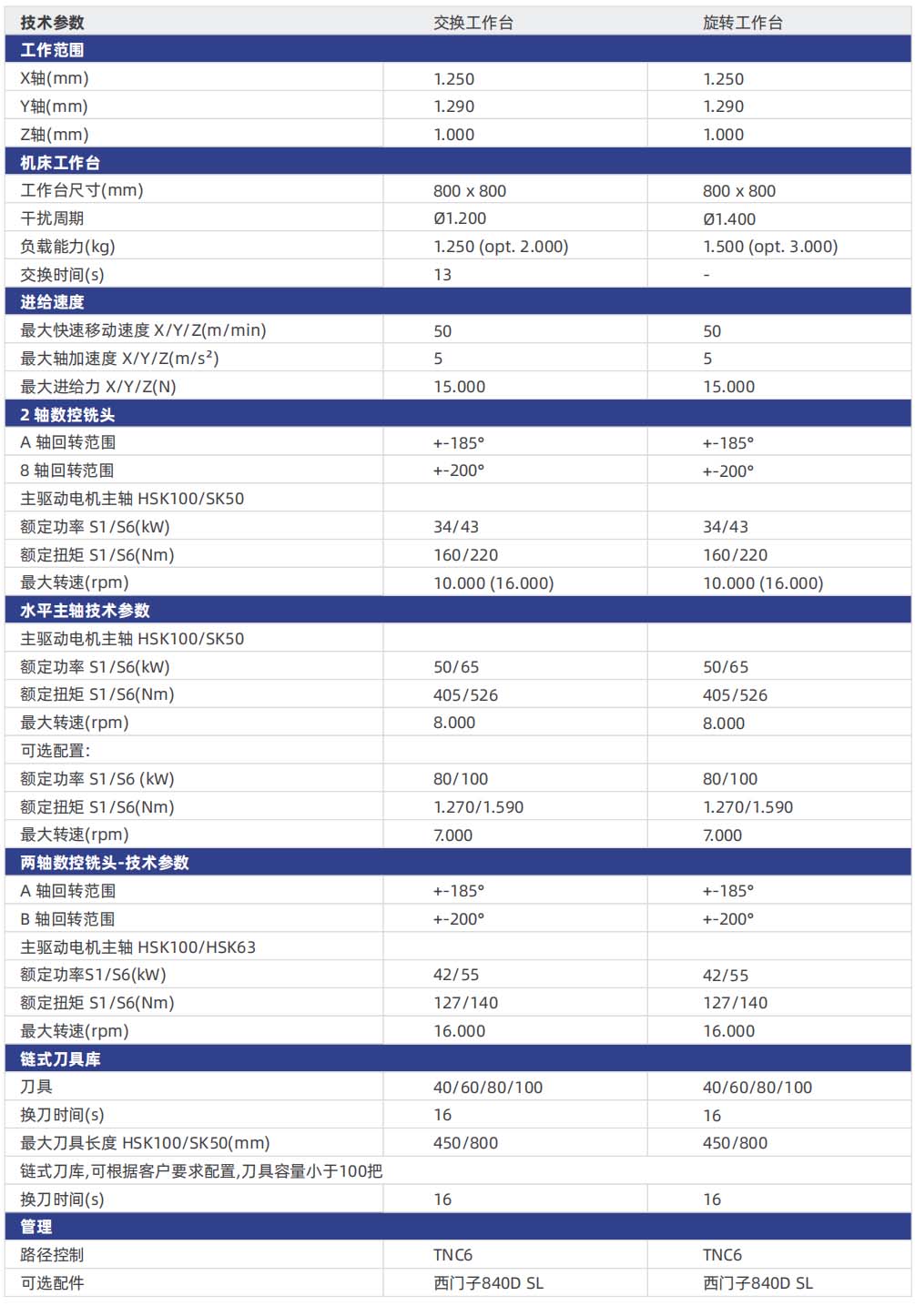

Module Building kit HDC 1250

The thermally symmetrical base structure, along with the Y-axis column and Z-axis slide made of mineral castings and featuring shock absorption, provides excellent stability for high dynamic processing. Therefore, HDC 1250 is highly suitable for the heaviest processing and can achieve excellent processing quality. To achieve a more flexible application range, we offer HDC machine tools with modular structures. tion kit.

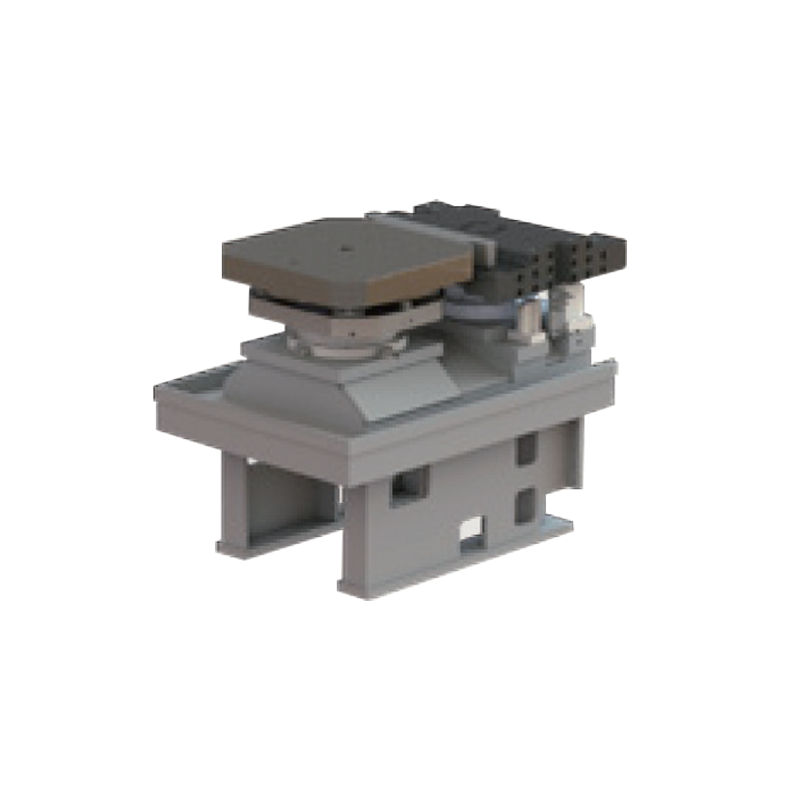

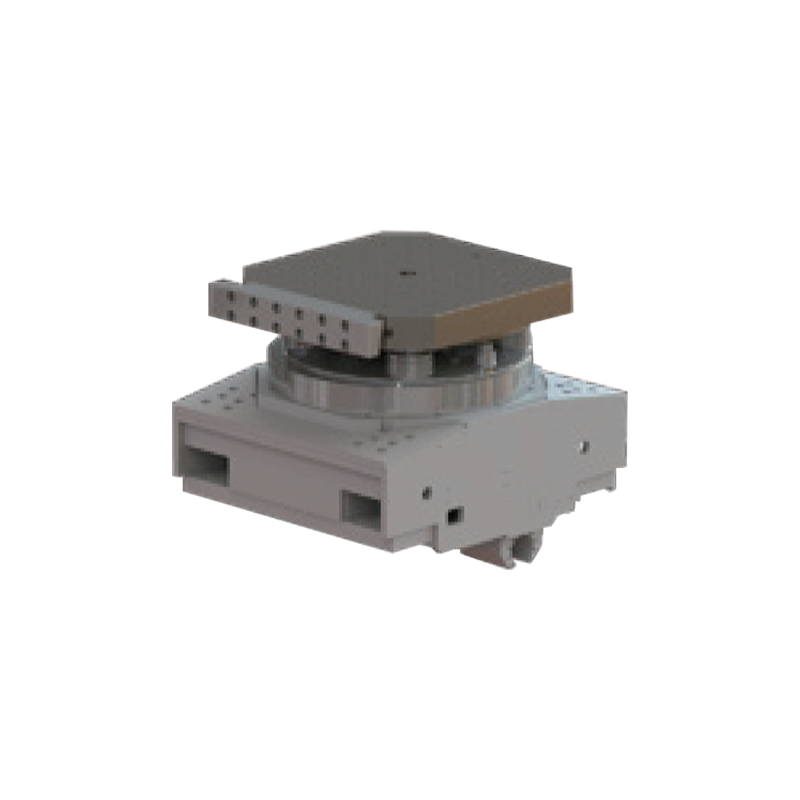

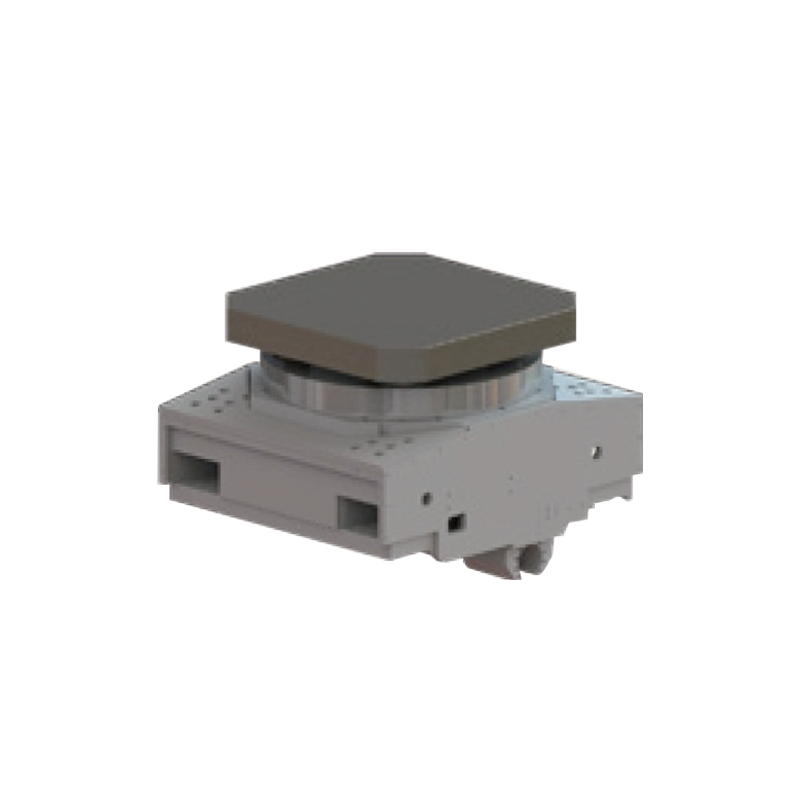

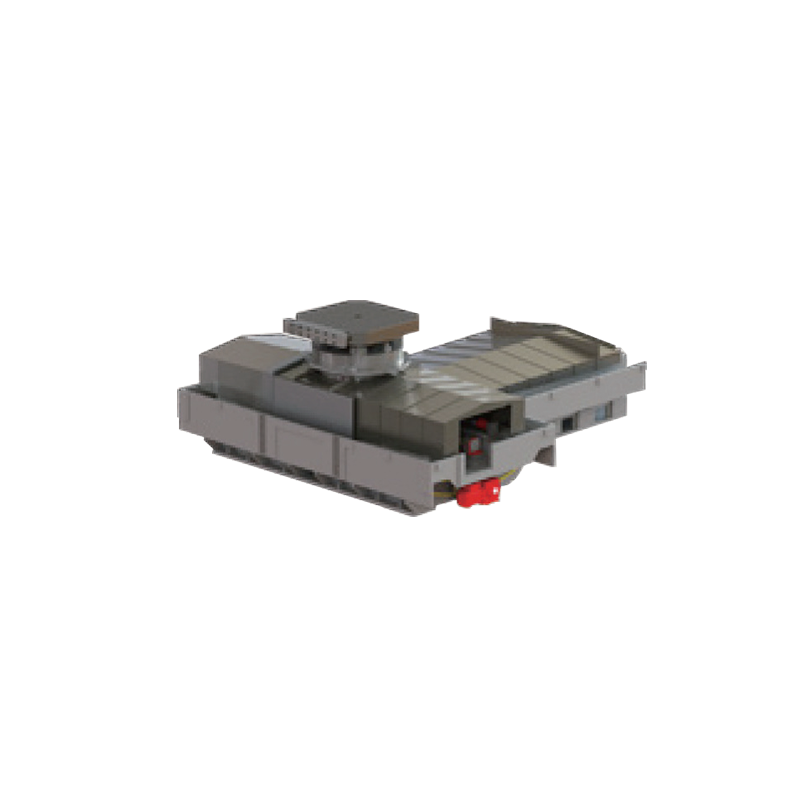

Machine tool worktable: Equipped with a maintenance-free torque-driven rotary worktable. High load capacity, up to 3 tons at most. Multi-faceted processing can be achieved with a single clamping. It is conducive to chip dropping during horizontal rough machining.

It has a five-axis linkage processing function: the rapid movement speed can reach up to 50 meters per minute

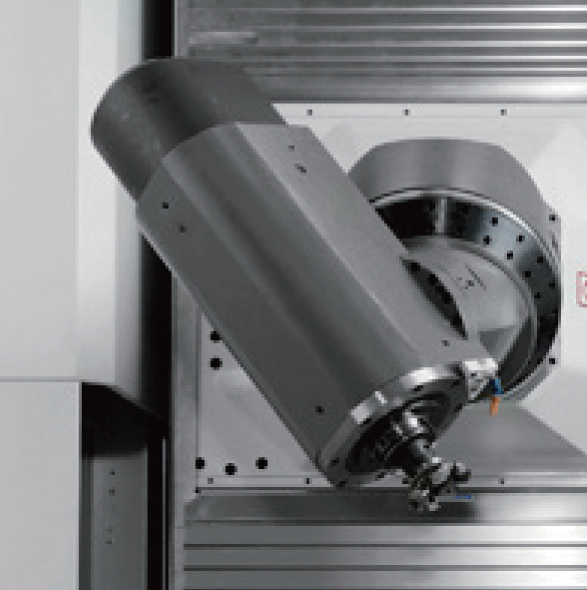

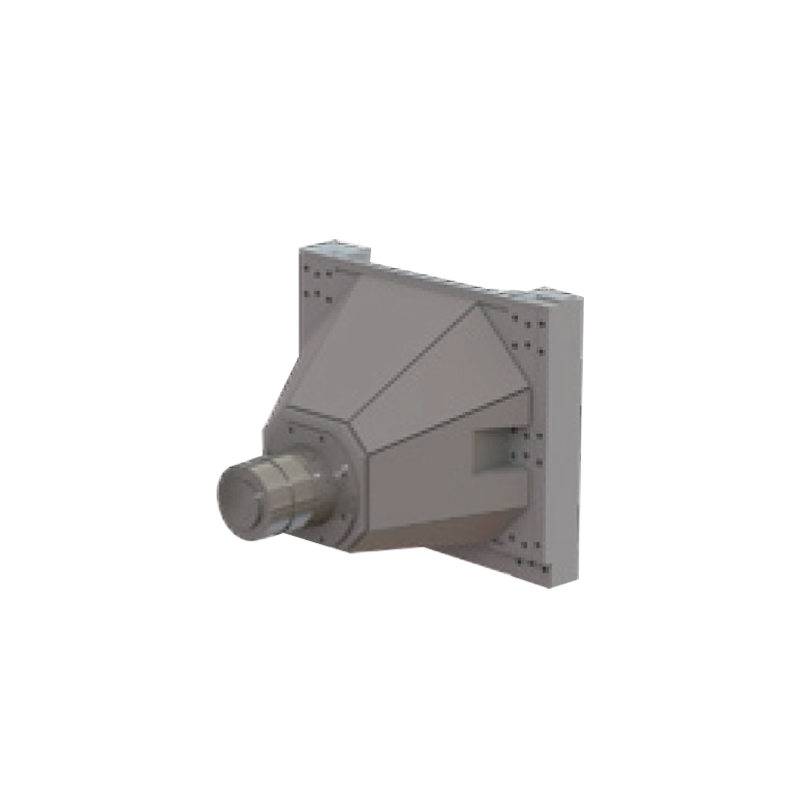

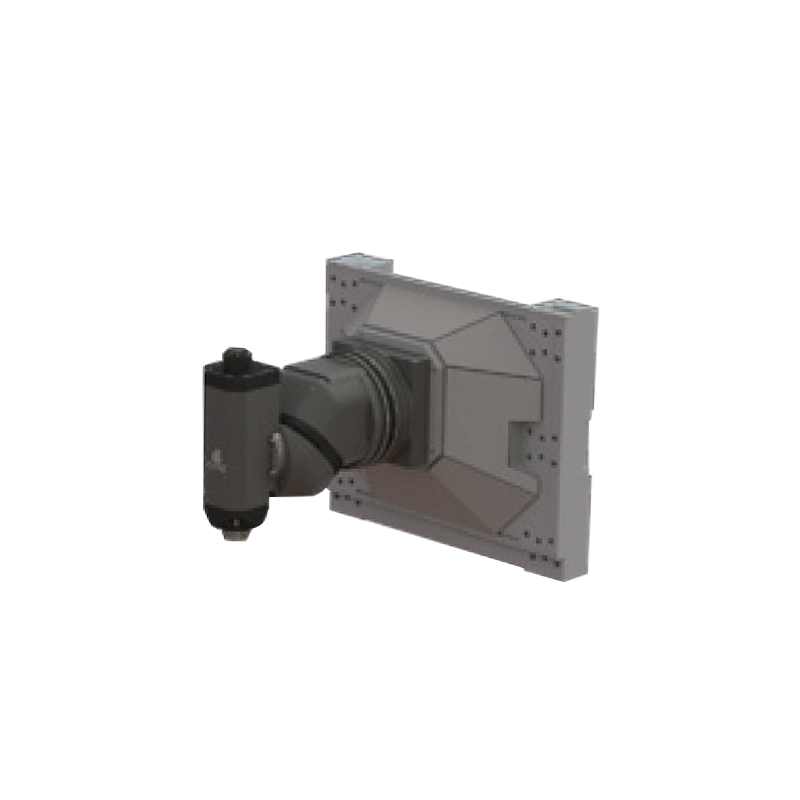

Milling head: Single-axis milling head (S6), torque 525 N · m, compatible with HSK 100 tool holder. Two-axis milling head (S6), torque 220 N · m, compatible with HSK 100. Two-axis milling head (S6) with tool holder, torque 140 N · m, compatible with HSK 100 / HSK 63 tool holders. Horizontal spindle (S6), torque 526 N · m, compatible with HSK 100 tool holder. Other types of spindles and milling heads can be provided according to customer requirements.

Direct measurement system

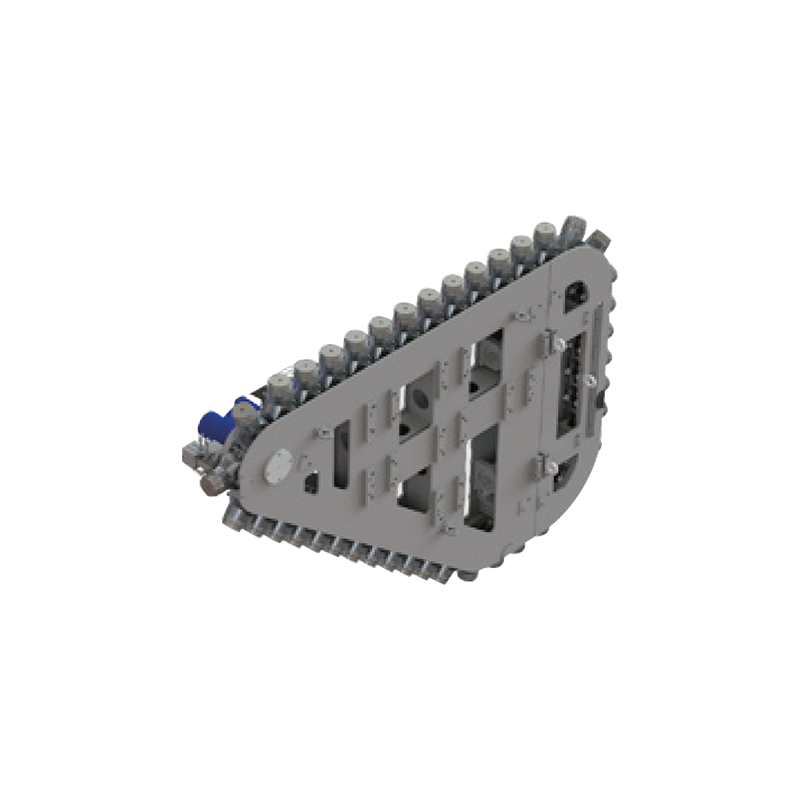

Tool magazine: Equipped with fully automatic processing capabilities for 40/60/80/100 tools. Optional cutting tools up to 800 millimeters in length are available.

Mineral castings shock-absorbing Y-axis columns and Z-axis slides: Provide excellent stability for high dynamic processing.

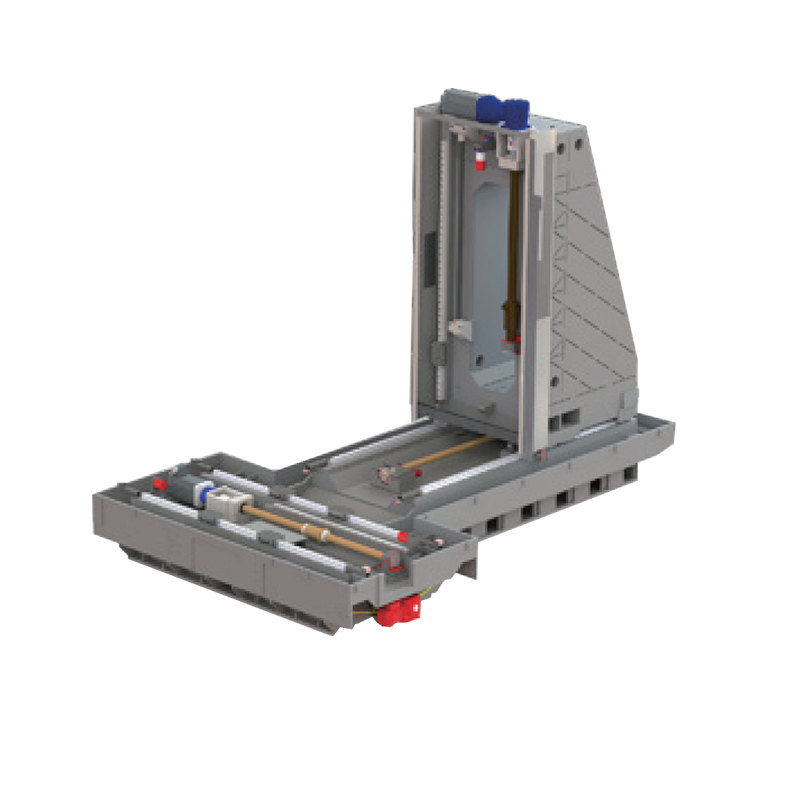

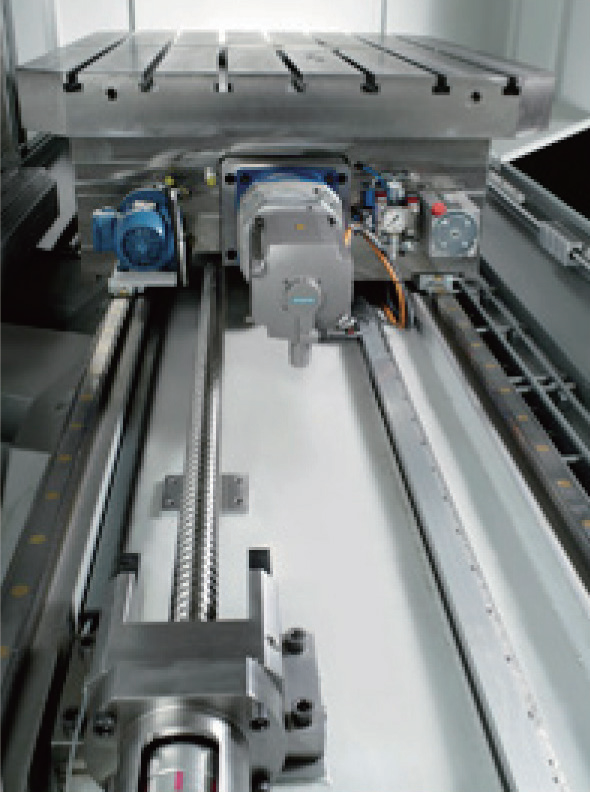

For the system (X, Y, Z axes) : A pre-tightened roller linear guide system is adopted, with central lubrication. Specifications of X, Y, and Z axis guide rails: 55X. Number of shaft sliders: 6. Number of Y-axis sliders: 4. Number of Z-axis sliders: 4.

Axis drive system (X, Y, Z axes) : Pre-tightened precision ball screws are adopted, with central lubrication. The diameter of the X and Y axis lead screws × lead: 60×40. Z-axis lead screw diameter × lead: 80×40.

Standard configuration: Water-cooled direct drive motor. Water-cooled electrical cabinet with a central cooling unit (maintenance-free). Reserve a modification interface for the chip removal screw on the Y-axis.
